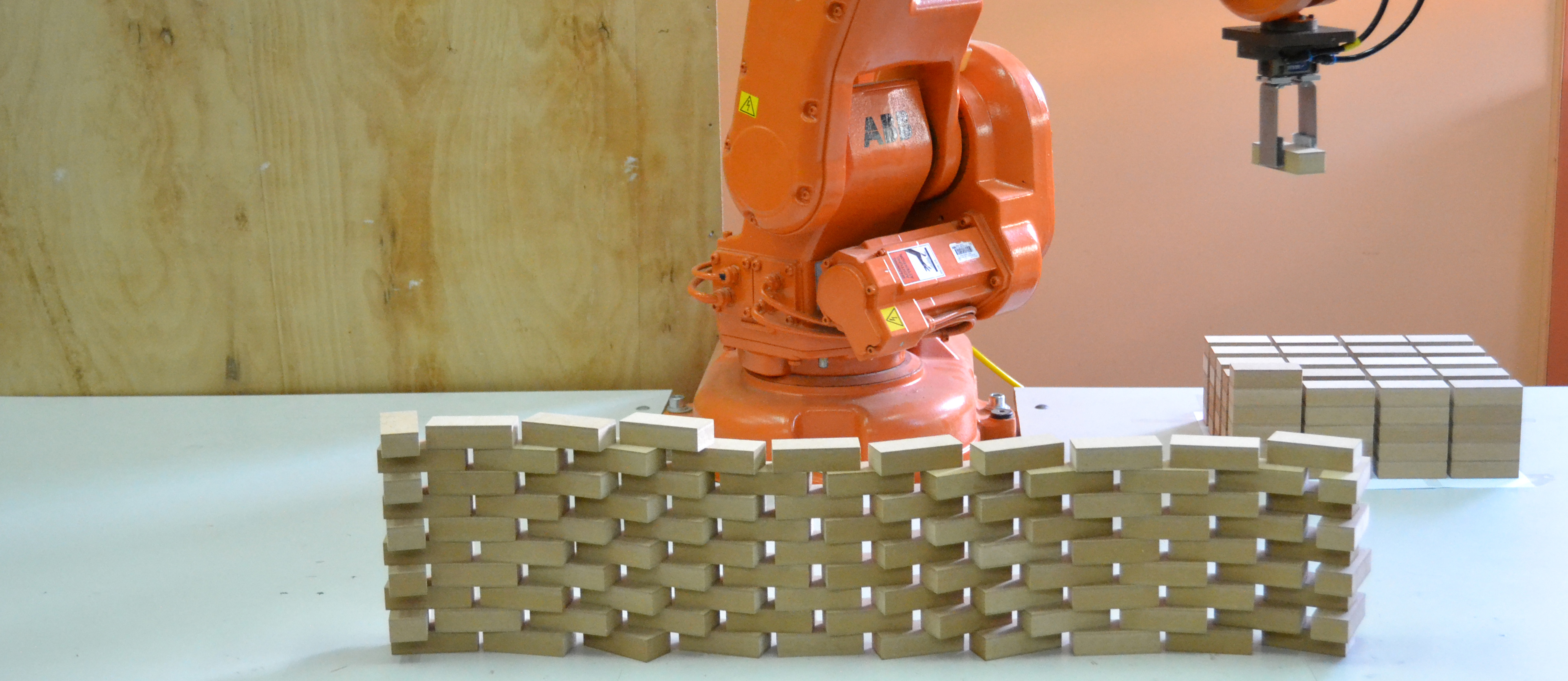

Abstract: This paper presents methodology and implementation of parametric architectural design of brick-laying walls fabricated by industrial robotic arm. As a design tool Grasshopper is used, a visual programming editor that runs within the Rhinoceros 3D CAD application. Grasshopper offers a range of objects for creating parametric models including brick-laying walls. However it lacks the ability of integration with fabrication tools. To overcome this problem, a custom C# script has been developed. As the fabrication tool, the ABB-IRB 140 robotic arm is used. Thus the C# script is written in such a way to obtain the RAPID code for controlling ABB industrial robots. The C# script enabled automated generation of RAPID code in accordance to the Grasshopper generated geometries of walls. The RAPID code is firstly tested in simulation environment, afterwards is used to control the robot to fabricate various types of walls.
